5S Serisi Kahverengi Yay  - Süper Ağı Yük Yayı

XLL% Uzun ömür için kapanma oranı Max% Maksimum çalışma mesafesi
S1 Stroke mm F1 Yük (N)
S2 Stroke mm F2 Yük (N)
R: Yayın 1mm kapanması için gerekli olan kuvvet.
(1N = 0,102 Kg, 1Kg = 9,81 N)
TOLERANS
Serbest Boy Minumum ± mm 0,75 veya ± 1% içindedir.
Dış Çap Yayların dış çapı her zaman katalogta belirtilen gövde çapondan daha küçüktür.
İç Çap Yayların iç çapı her zaman katalogta belirteilen kılavuz pimi çapında daha büyüktür.

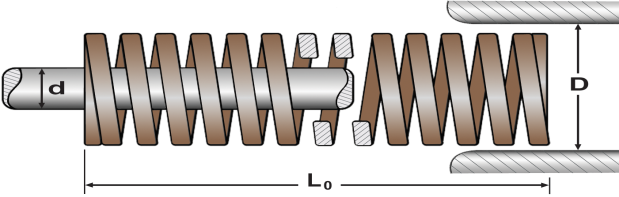

D d Lo R XLL 10% XLL 10% Max 15% Max 15% Sipariş Kodu
Dış Çap (mm) İç Çap (mm) Serbest Boy (mm) (N/mm) S1 F1 S2 F2 Sipariş Kodu
10 5 25 167 2.5 418 3.8 626 5S10025
10 5 32 130 3.2 416 4.8 624 5S10032
10 5 38 105 3.8 399 5.7 599 5S10038
10 5 44 86 4.4 378 6.6 568 5S10044
10 5 51 79 5.1 403 7.7 604 5S10051
10 5 64 62 6.4 397 9.6 595 5S10064
10 5 76 51 7.6 388 11.4 581 5S10076
12.5 6.3 25 288 2.5 720 3.8 1080 5S13025
12.5 6.3 32 216 3.2 691 4.8 1037 5S13032
12.5 6.3 38 176 3.8 669 5.7 1003 5S13038
12.5 6.3 44 149 4.4 656 6.6 983 5S13044
12.5 6.3 51 128 5.1 653 7.7 979 5S13051
12.5 6.3 64 100 6.4 640 9.6 960 5S13064
12.5 6.3 76 84 7.6 638 11.4 958 5S13076
12.5 6.3 89 71 8.9 632 13.4 948 5S13089
12.5 6.3 102 61 10.2 622 15.3 933 5S13102
16 8 32 449 3.2 1437 4.8 2155 5S16032
16 8 38 363 3.8 1379 5.7 2069 5S16038
16 8 44 309 4.4 1360 6.6 2039 5S16044
16 8 51 256 5.1 1306 7.7 1958 5S16051
16 8 64 203 6.4 1299 9.6 1949 5S16064
16 8 76 166 7.6 1262 11.4 1892 5S16076
16 8 89 139 8.9 1237 13.4 1856 5S16089
16 8 102 114 10.2 1163 15.3 1744 5S16102
16 8 115 105 11.5 1208 17.3 1811 5S16115
16 8 127 94 12.7 1194 19.1 1791 5S16127
16 8 152 69 15.2 1049 22.8 1573 5S16152
16 8 305 37 30.5 1129 45.8 1693 5S16305
20 10 44 452 4.4 1989 6.6 2983 5S19044
20 10 51 378 5.1 1928 7.7 2892 5S19051
20 10 64 301 6.4 1926 9.6 2890 5S19064
20 10 76 247 7.6 1877 11.4 2816 5S19076
20 10 89 208 8.9 1851 13.4 2777 5S19089
20 10 102 188 10.2 1918 15.3 2876 5S19102
20 10 115 159 11.5 1829 17.3 2743 5S19115
20 10 127 146 12.7 1854 19.1 2781 5S19127
20 10 152 121 15.2 1839 22.8 2759 5S19152
20 10 305 60 30.5 1830 45.8 2745 5S19305
25 12.5 44 1158 4.4 5095 6.6 7643 5S25044
25 12.5 51 933 5.1 4758 7.7 7137 5S25051
25 12.5 64 730 6.4 4672 9.6 7008 5S25064
25 12.5 76 556 7.6 4226 11.4 6338 5S25076
25 12.5 89 462 8.9 4112 13.4 6168 5S25089
25 12.5 102 390 10.2 3978 15.3 5967 5S25102
25 12.5 115 360 11.5 4140 17.3 6210 5S25115
25 12.5 127 326 12.7 4140 19.1 6210 5S25127
25 12.5 152 255 15.2 3876 22.8 5814 5S25152
25 12.5 178 230 17.8 4094 26.7 6141 5S25178
25 12.5 203 202 20.3 4101 30.5 6151 5S25203
25 12.5 305 136 30.5 4148 45.8 6222 5S25305
32 16 44 1300 4.4 5720 6.6 8580 5S32044
32 16 51 1150 5.1 5865 7.7 8798 5S32051
32 16 64 887 6.4 5677 9.6 8515 5S32064
32 16 76 733 7.6 5571 11.4 8356 5S32076
32 16 89 612 8.9 5447 13.4 8170 5S32089
32 16 102 544 10.2 5549 15.3 8323 5S32102
32 16 115 494 11.5 5681 17.3 8522 5S32115
32 16 127 432 12.7 5486 19.1 8230 5S32127
32 16 152 356 15.2 5411 22.8 8117 5S32152
32 16 178 304 17.8 5411 26.7 8117 5S32178
32 16 203 265 20.3 5380 30.5 8069 5S32203
32 16 254 214 25.4 5436 38.1 8153 5S32254
32 16 305 177 30.5 5399 45.8 8098 5S32305
40 20 64 1228 6.4 7859 9.6 11789 5S38064
40 20 76 1017 7.6 7729 11.4 11594 5S38076
40 20 89 880 8.9 7832 13.4 11748 5S38089
40 20 102 762 10.2 7772 15.3 11659 5S38102
40 20 115 679 11.5 7809 17.3 11713 5S38115
40 20 127 622 12.7 7899 19.1 11849 5S38127
40 20 152 509 15.2 7737 22.8 11605 5S38152
40 20 178 429 17.8 7636 26.7 11454 5S38178
40 20 203 374 20.3 7592 30.5 11388 5S38203
40 20 254 296 25.4 7518 38.1 11278 5S38254
40 20 305 246 30.5 7503 45.8 11255 5S38305
50 25 64 1980 6.4 12672 9.6 19008 5S50064
50 25 76 1811 7.6 13764 11.4 20645 5S50076
50 25 89 1410 8.9 12549 13.4 18824 5S50089
50 25 102 1215 10.2 12393 15.3 18590 5S50102
50 25 115 1076 11.5 12374 17.3 18561 5S50115
50 25 127 968 12.7 12294 19.1 18440 5S50127
50 25 152 806 15.2 12251 22.8 18377 5S50152
50 25 178 698 17.8 12424 26.7 18637 5S50178
50 25 203 612 20.3 12424 30.5 18635 5S50203
50 25 254 472 25.4 11989 38.1 17983 5S50254
50 25 305 388 30.5 11834 45.8 17751 5S50305
63 38 89 1560 10 15600 17.4 27144 5S63089
63 38 102 1298 12 15576 20.9 27128 5S63102
63 38 115 1078 14.1 15200 25.2 27166 5S63115
63 38 127 970 15.7 15229 28 27160 5S63127
63 38 152 801 18.9 15139 33.9 27154 5S63152
63 38 178 655 23.4 15327 41.4 27117 5S63178
63 38 203 552 27 14904 49 27048 5S63203
63 38 254 423 35 14805 64 27072 5S63254
63 38 305 349 42.5 14833 77.5 27048 5S63305
